ADAS Recalibration Report Form

Depending on the vehicle (if supported), an ADAS Recalibration Report form (example below) may be available after performing an ADAS recalibration test.

The ADAS Recalibration Report form allows you to print the form with your shop information, the vehicle’s VIN, odometer and license plate information. The recalibration information is manually entered after the form is printed.

When a recalibration test is started, the generated report form will be associated with the vehicle that was active at the time it was started. A link to the report PDF file can be found in that vehicle’s “vehicle record” on the Attachment panel, see Vehicle History.

All reports are uploaded to the Snap-on Cloud automatically when they are created.

●

To learn more, see Snap-on Cloud Help (opens in new tab).

Saving the Report (Typical Navigation)

Connect the diagnostic tool to the vehicle and identify the vehicle.

The information that is entered during vehicle identification is automatically entered onto the report form (vehicle make, model, VIN, odometer, license number, etc). The Shop Information that is associated with the diagnostic tool is also entered on the form, see Shop Information to edit this information.

From the System menu, select the applicable ADAS (Driver Assistance) system (Lane Departure Alert, Cruise Control Radar, Front Sensing Camera, Front/Rear Camera Sensor, etc (system names vary by manufacturer)).

Select the applicable functional test or adjustment option (Recognition Camera Axis Adjust, Beam Axis Adjustment, Static Aiming, etc (test names vary by manufacturer)).

Follow and perform all the required setup instructions. Reference and setup values are located in the OEM service information which is available separately. If using the ADAS Recalibration System, setup values and instructions are provided with the unit.

Take screenshots of any setup and or results screens that may be needed for reference later when filling out the form.

Initiate the recalibration test when prompted.

Once calibration is completed Exit the test.

Select the Back Arrow twice to return to the System menu.

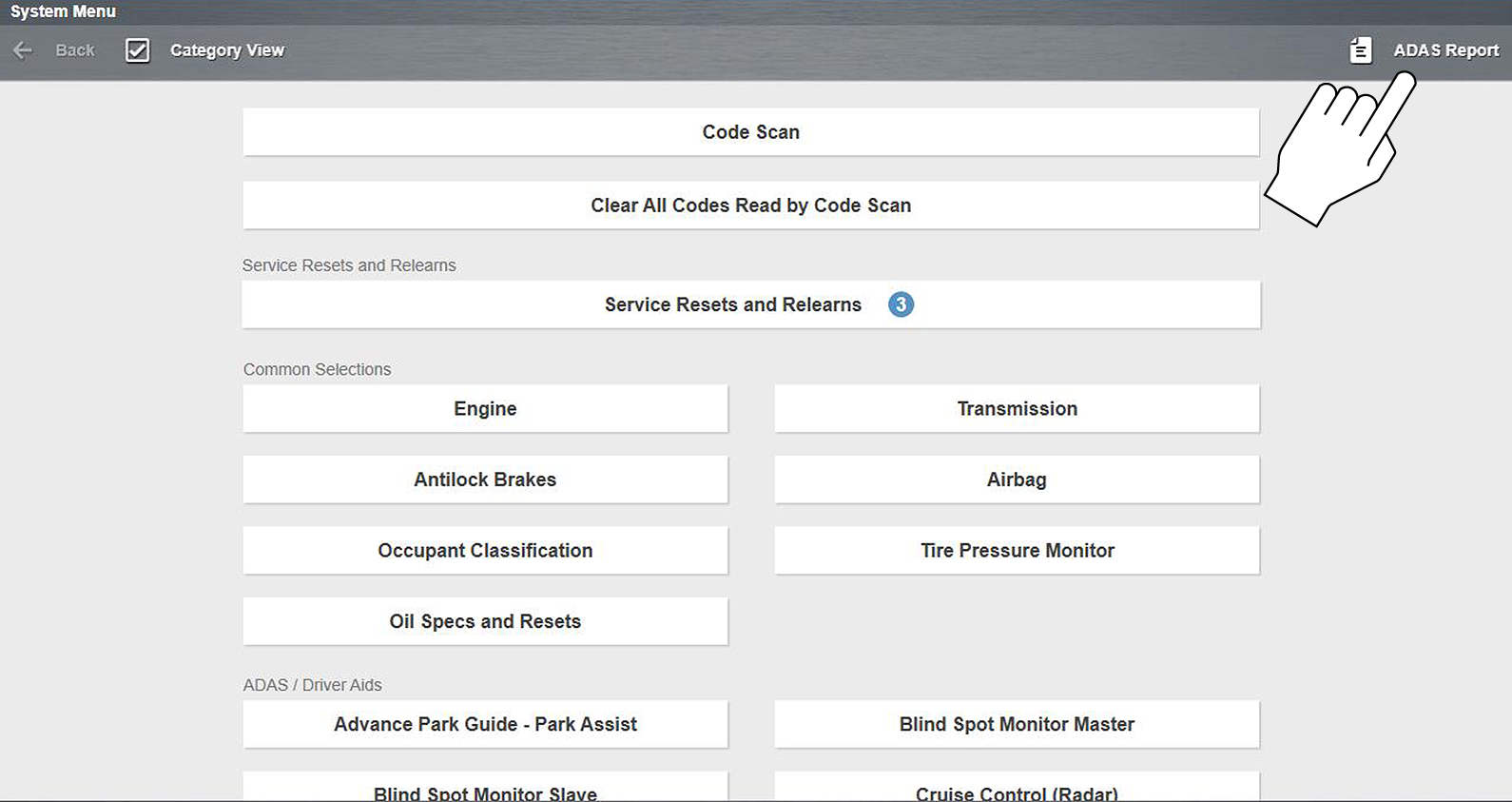

From the upper toolbar, select ADAS Report.

The ADAS Report form is displayed.

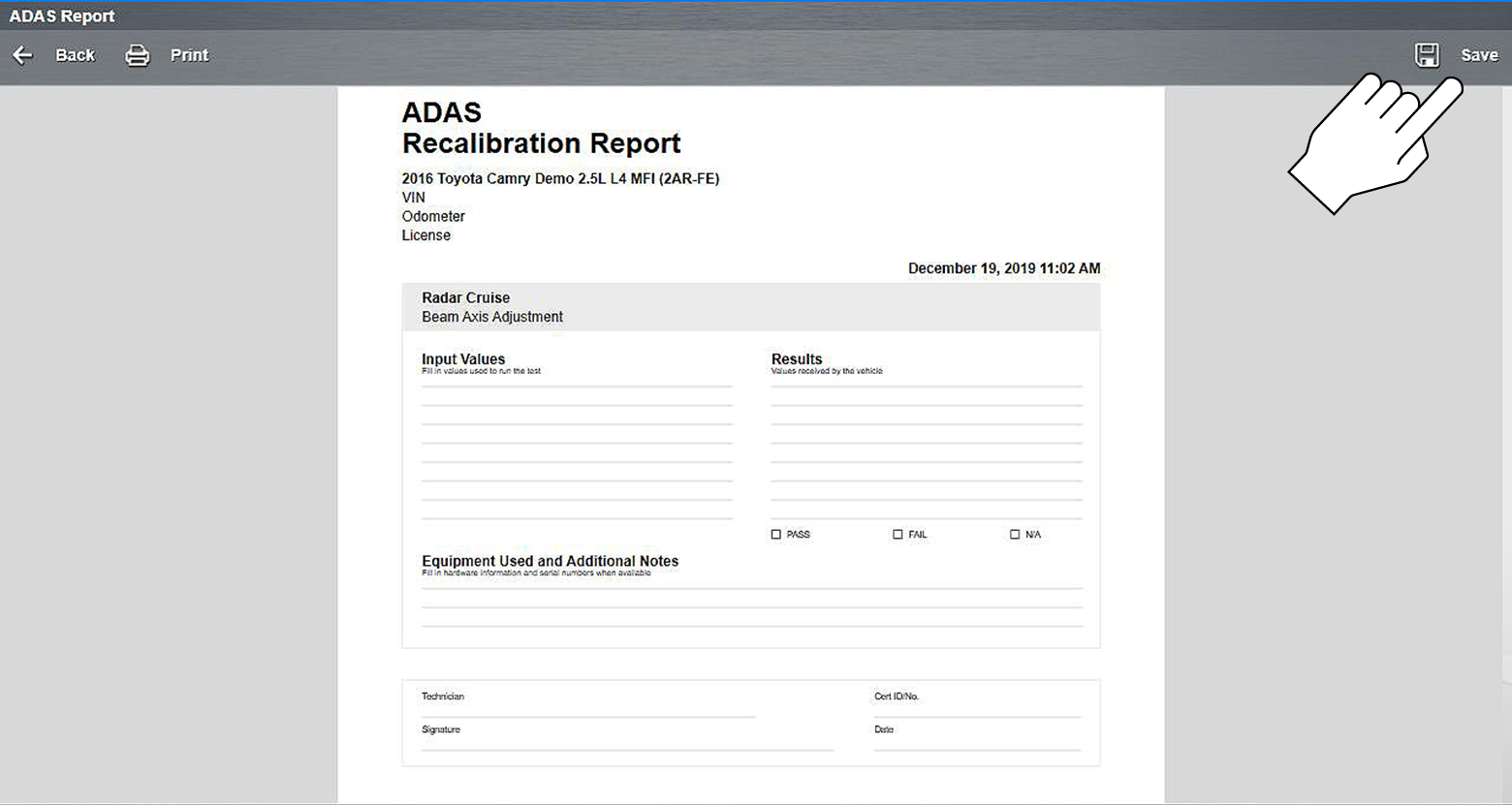

Select Save to save the report within the diagnostic tool and automatically upload it to the Snap-on Cloud.

Selecting Print will not save the report.

The report form is saved as a PDF file that can be accessed from the following locations:

●

Snap-on Cloud

●

On the tool - Vehicle Record attachment field, see Vehicle History (View)

●

On the tool - ADAS reports are saved in .pdf format and are viewable by opening them from the ADAS Report Data Folder in the Data Manager folder panel, or from within the Vehicle System Report Data folder in the Windows My Documents > ShopStream folder.(in Data Manager).

As reference the file is typically located in the following path:

C:\Users\ShopstreamUser\Documents\ShopStream\ADAS Report Data Folder\ (date).pdf.

Printing the Report

Before you can print you must install a printer and have a current version of Adobe Reader installed.

To install a printer, see Printing / Printer Setup.

To check and/or install Adobe Reader, see Checking/Installing Adobe® Reader.

●

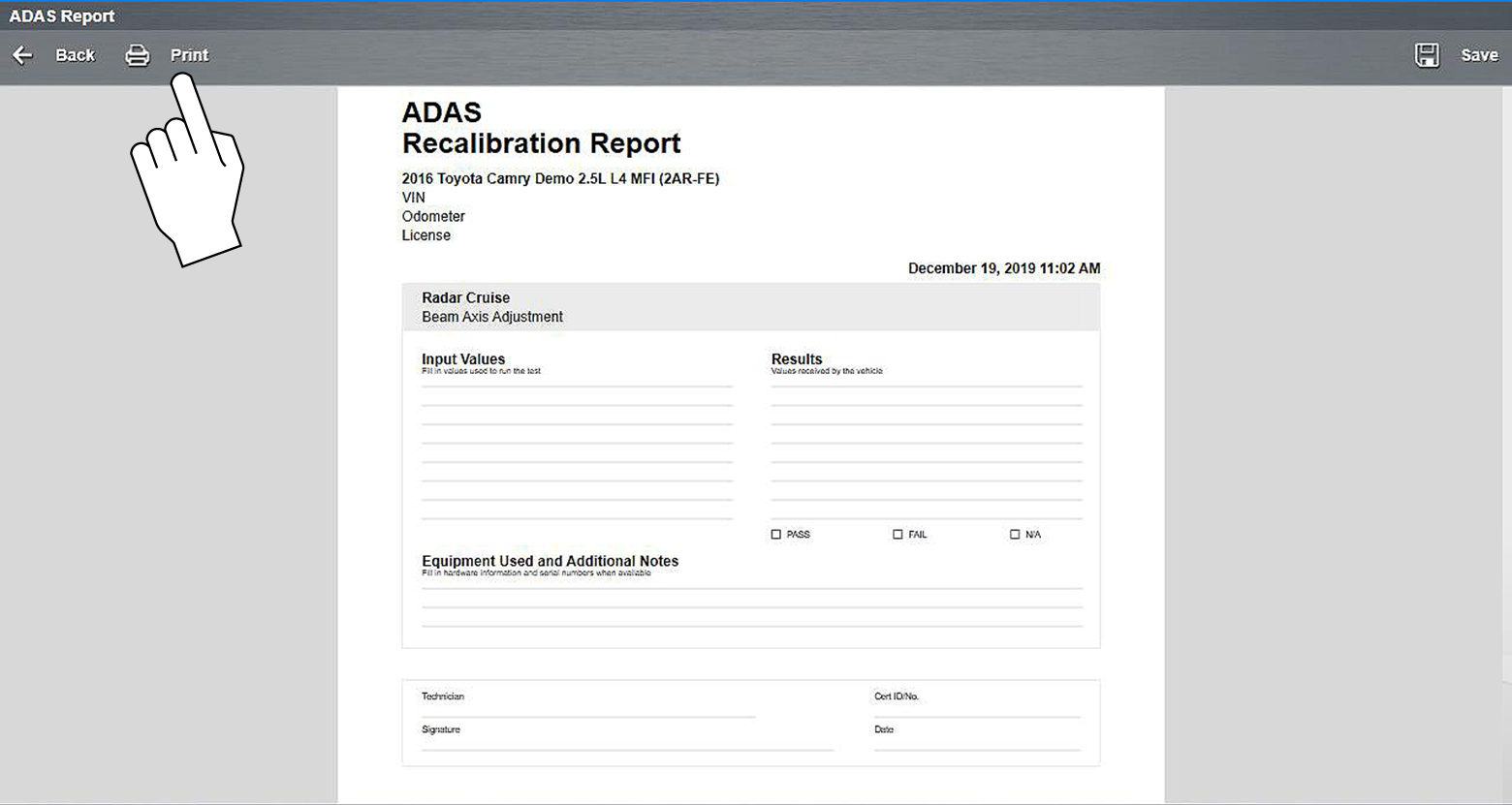

The report may be directly printed by selecting the Print icon from the System menu toolbar.

●

If the file was saved it may also be printed from either the Vehicle Record attachment, or from the ADAS Report Data Folder within Data Manager.

The following sections describe these methods.

Printing (From Data Manager)

To print the file from Data Manager:

Select Data Manager from the Home Screen

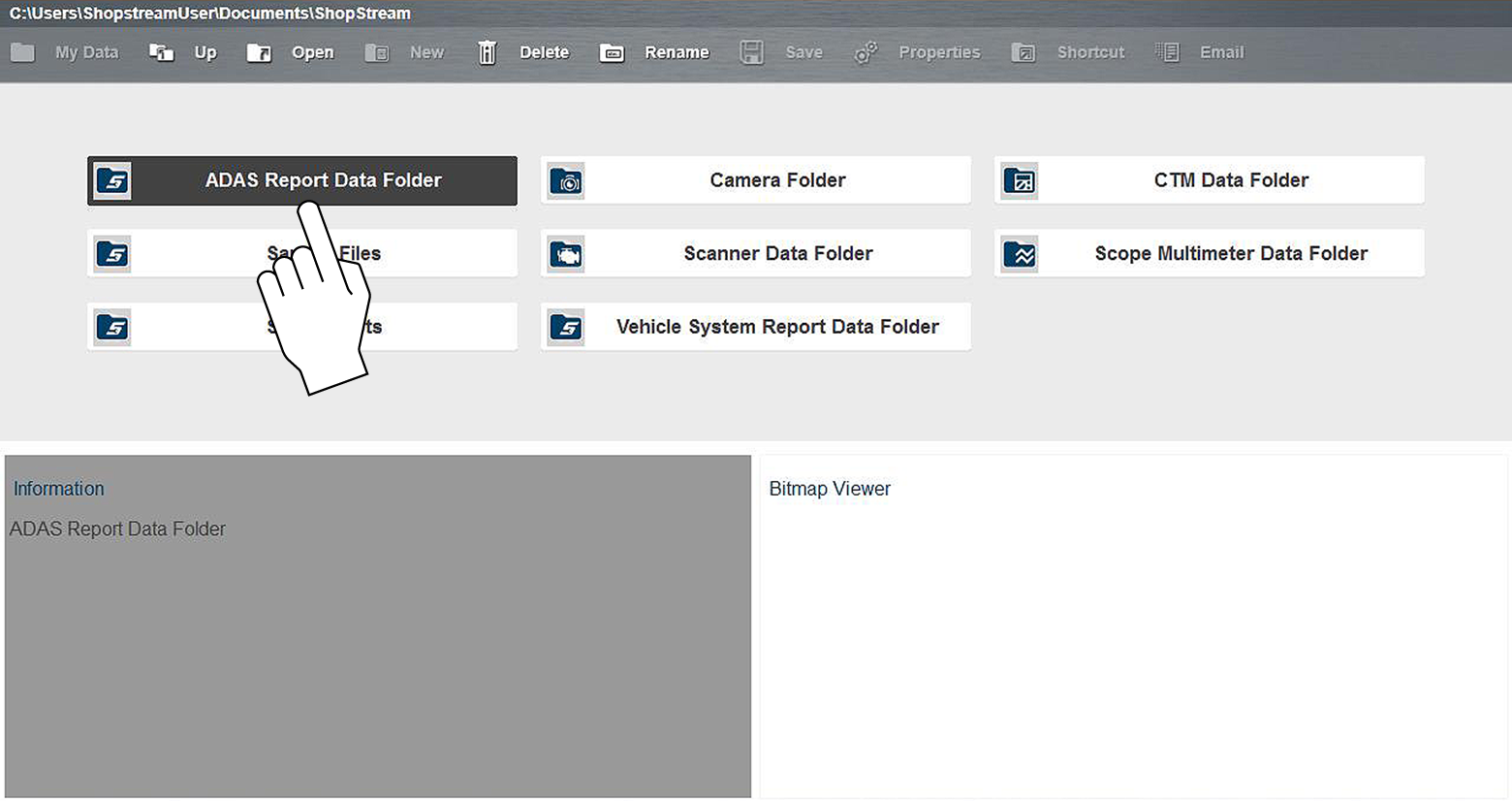

Select and open the ADAS Report Data Folder.

Select and open the ADAS Report PDF file from the list.

From the PDF viewer use the menu or toolbar print options to print the file.

Printing (From Vehicle History Record)

When a code scan is saved, the file is saved as a PDF file in the attachments section of the current Vehicle Record.
